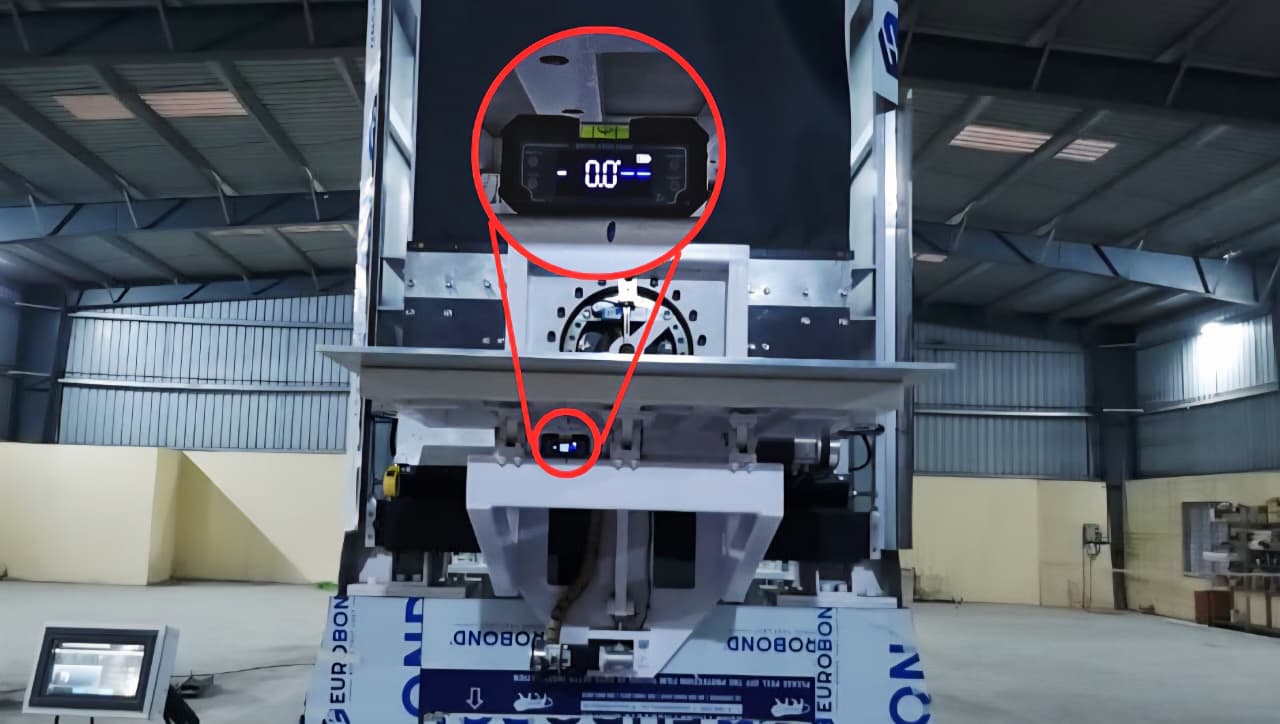

Antenna Deployment Rig (ADR)

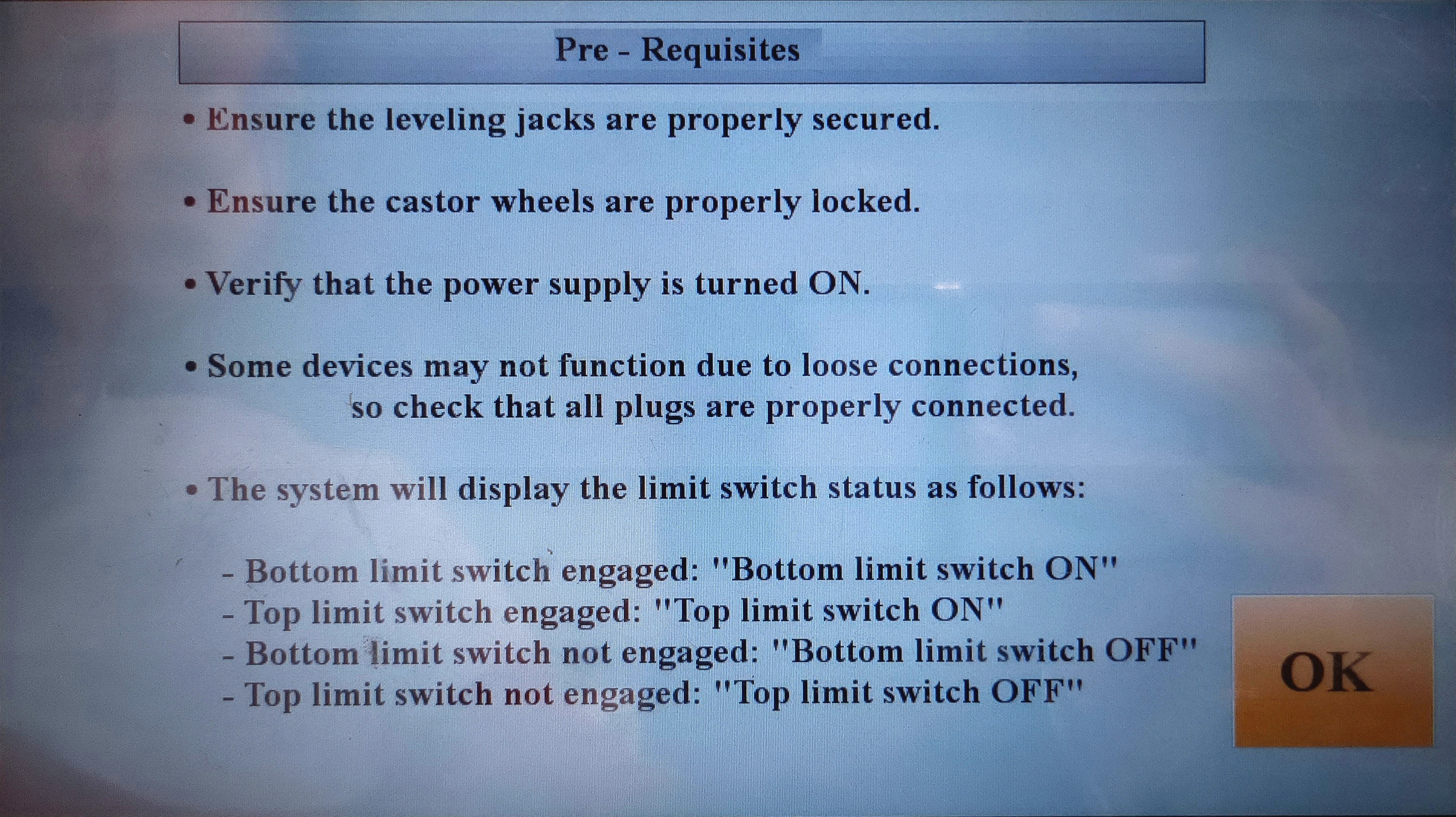

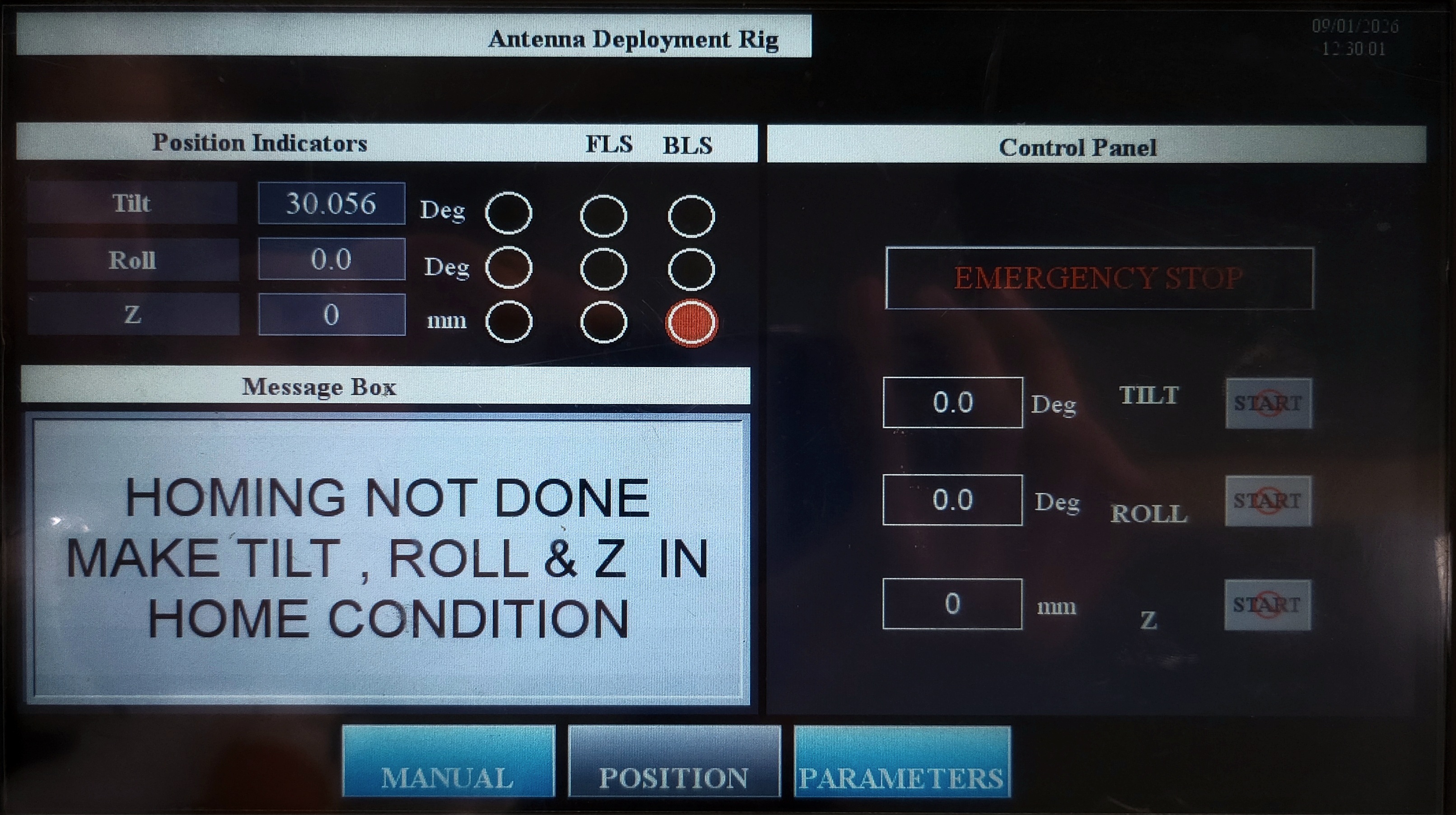

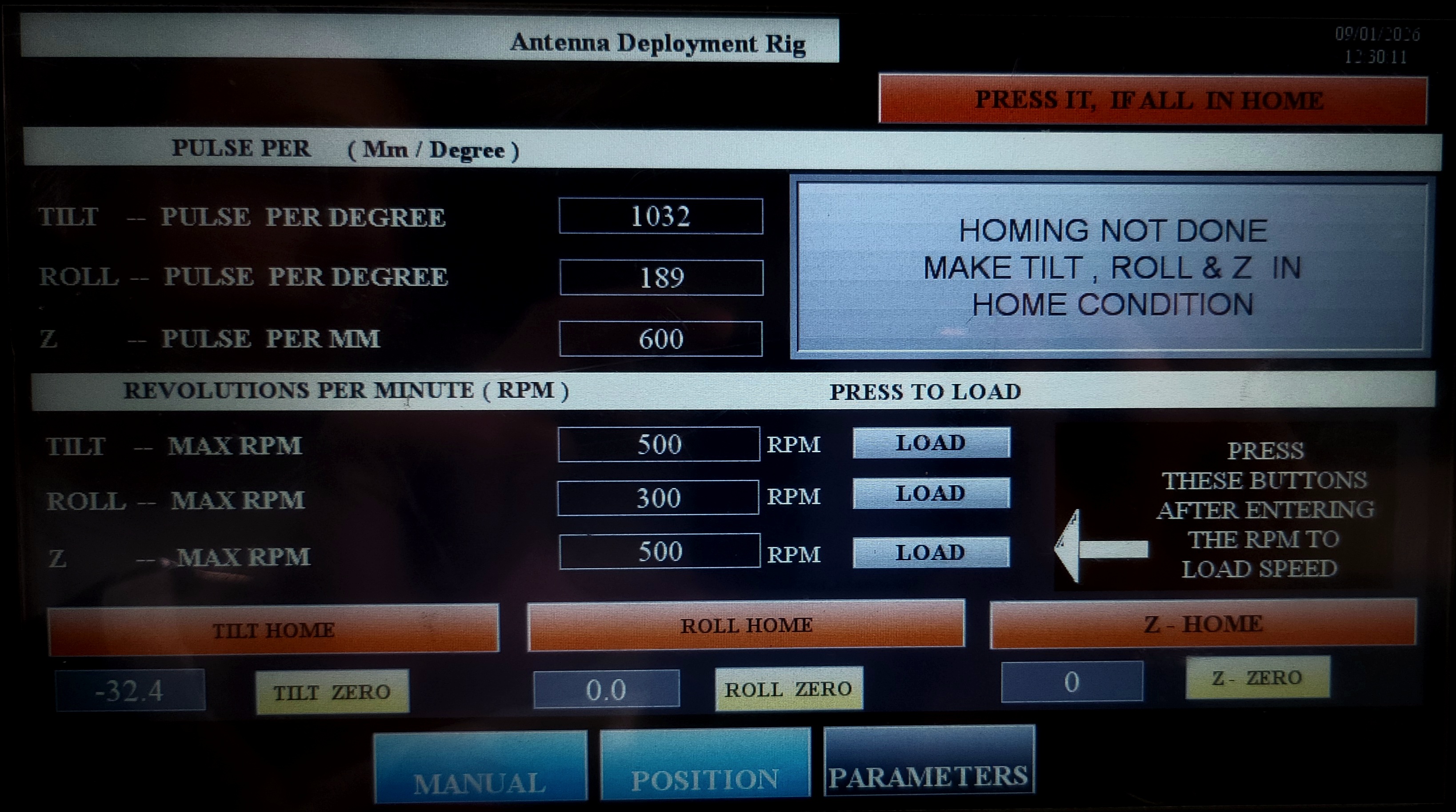

Controlled upwards and downwards using software with a range of 0–3000 mm, with minimum and maximum reach limits detected by limit switches on both sides.

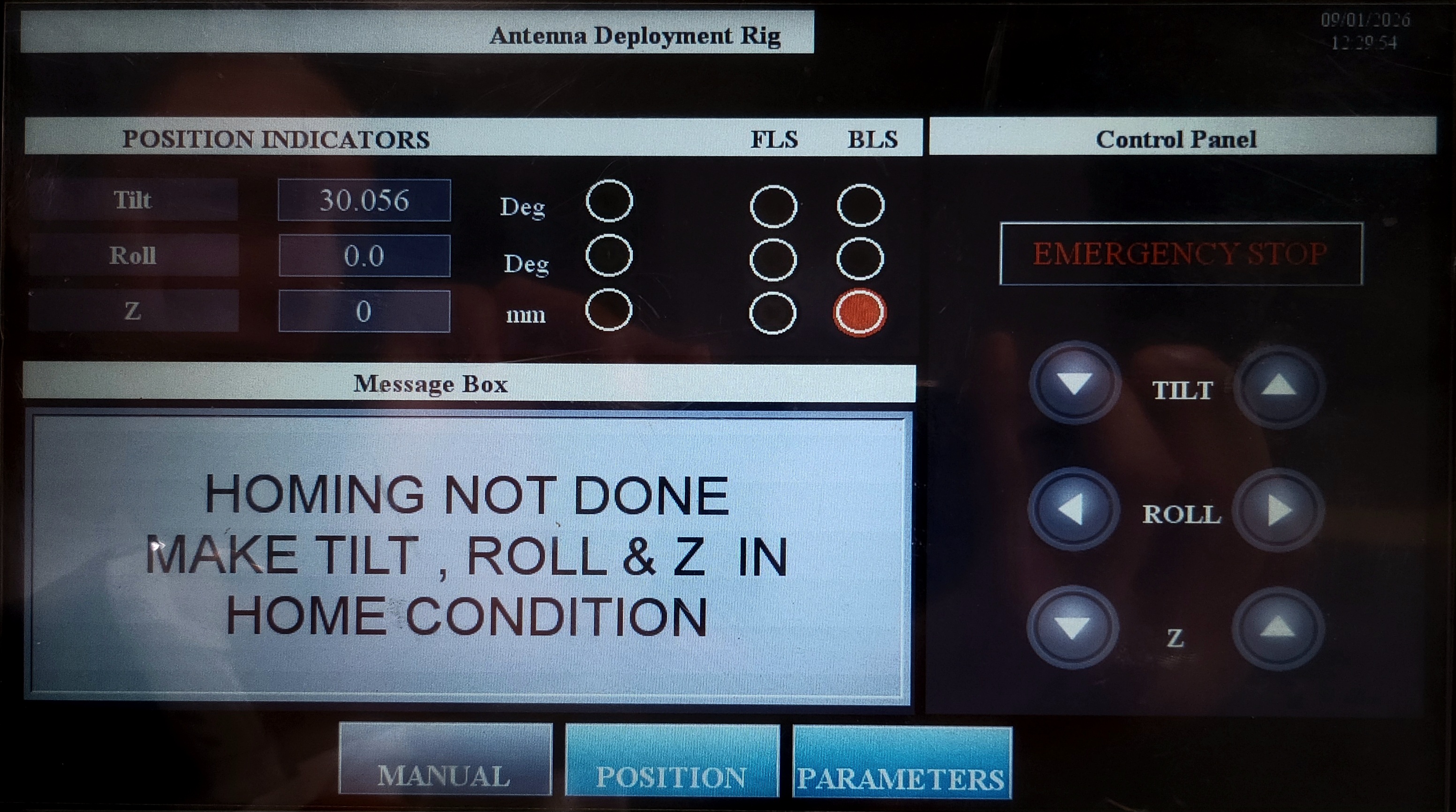

Controlled up and down through the software with a range of 0° to 30°, with a reach limit detected by limit switches on both sides.

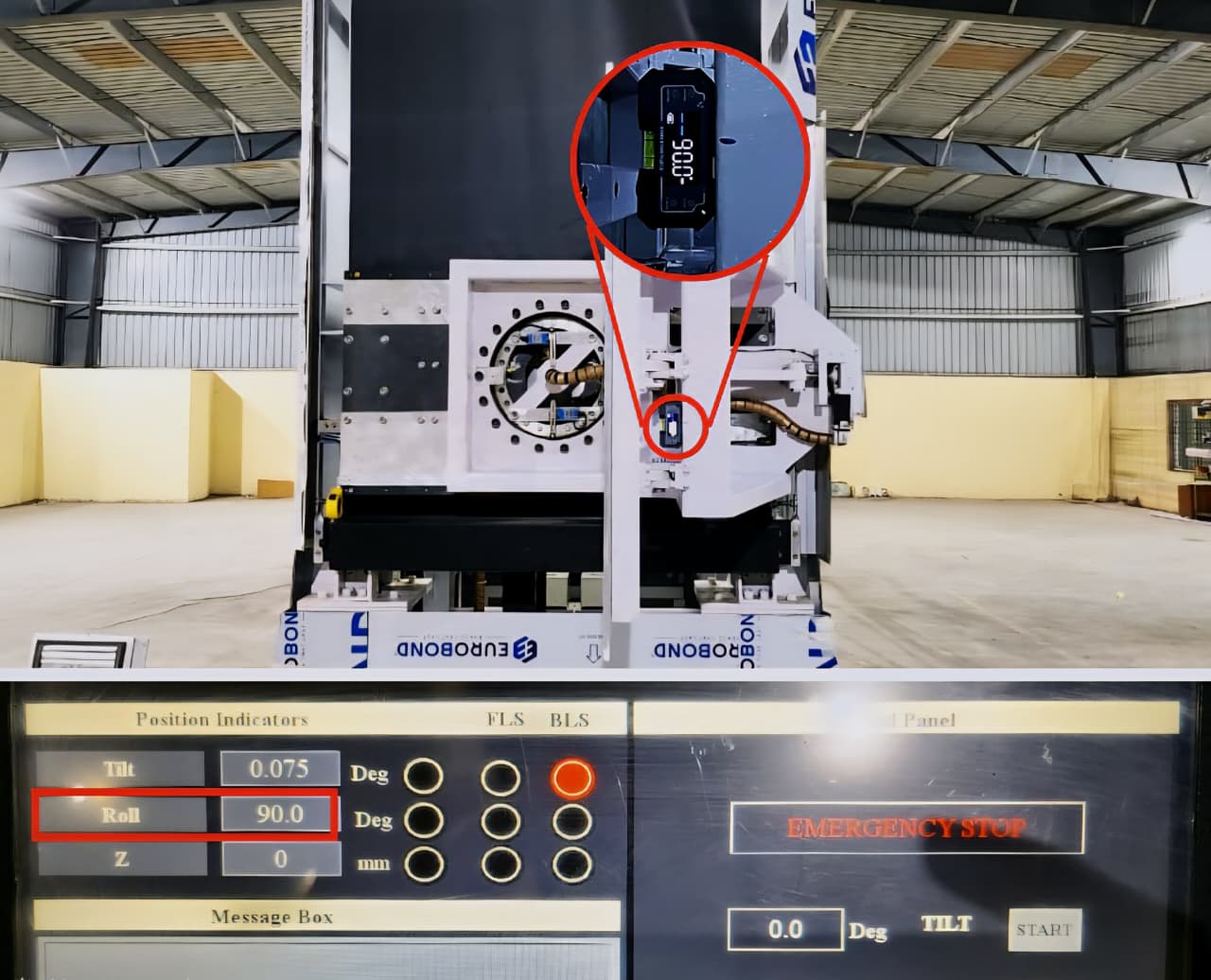

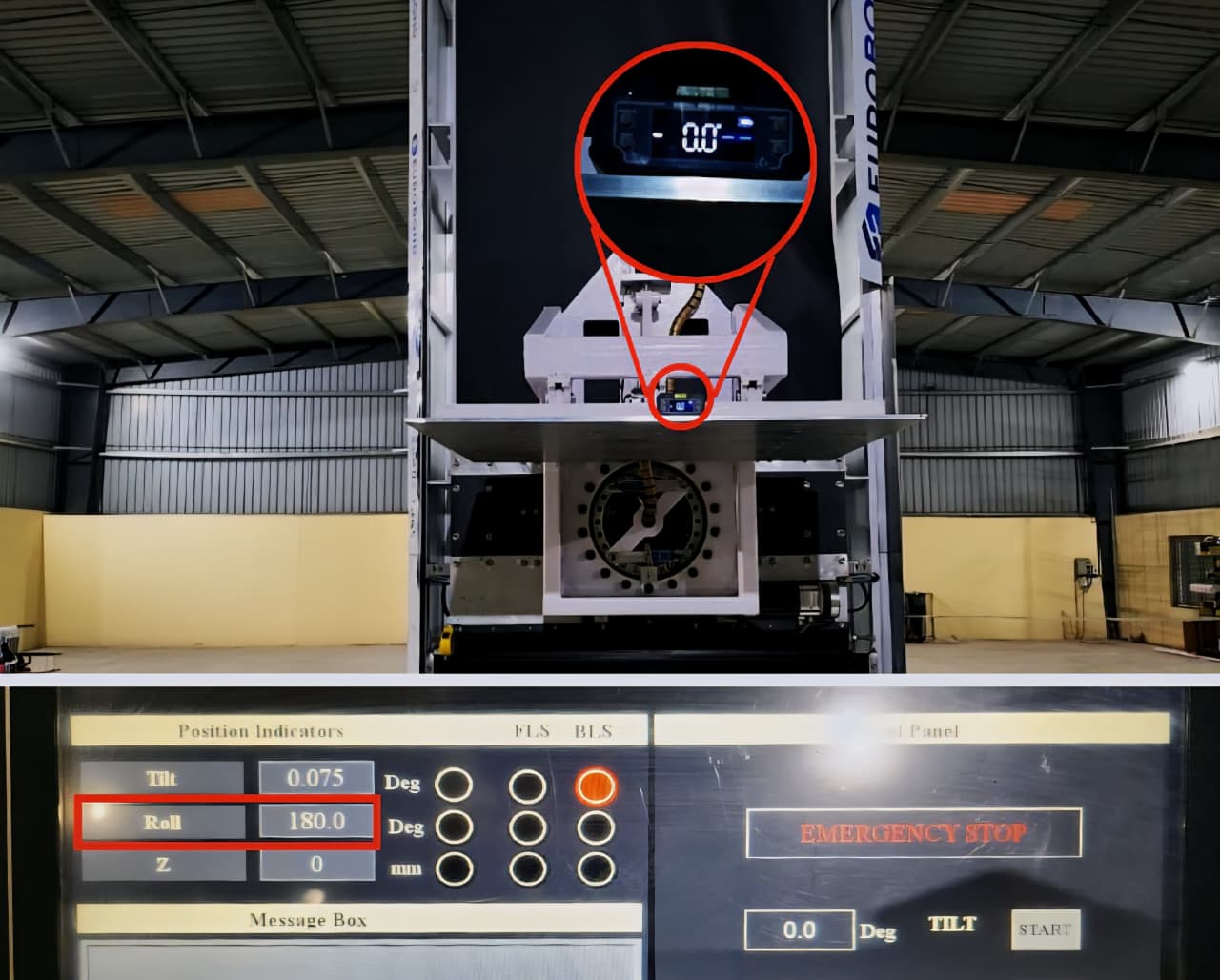

Controlled left and right through the software with a range of ± 180°, with a reach limit detected by limit switches on both sides.

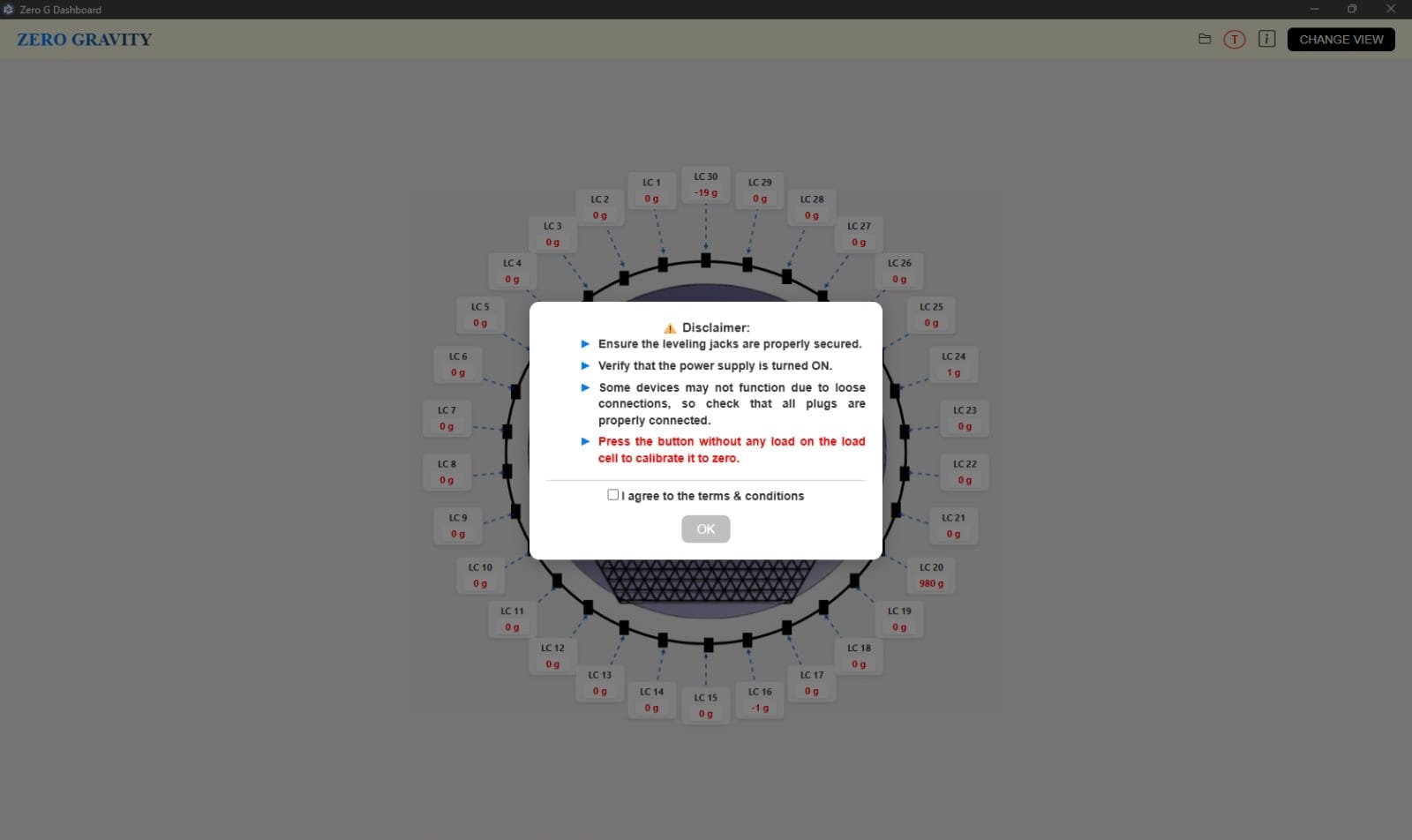

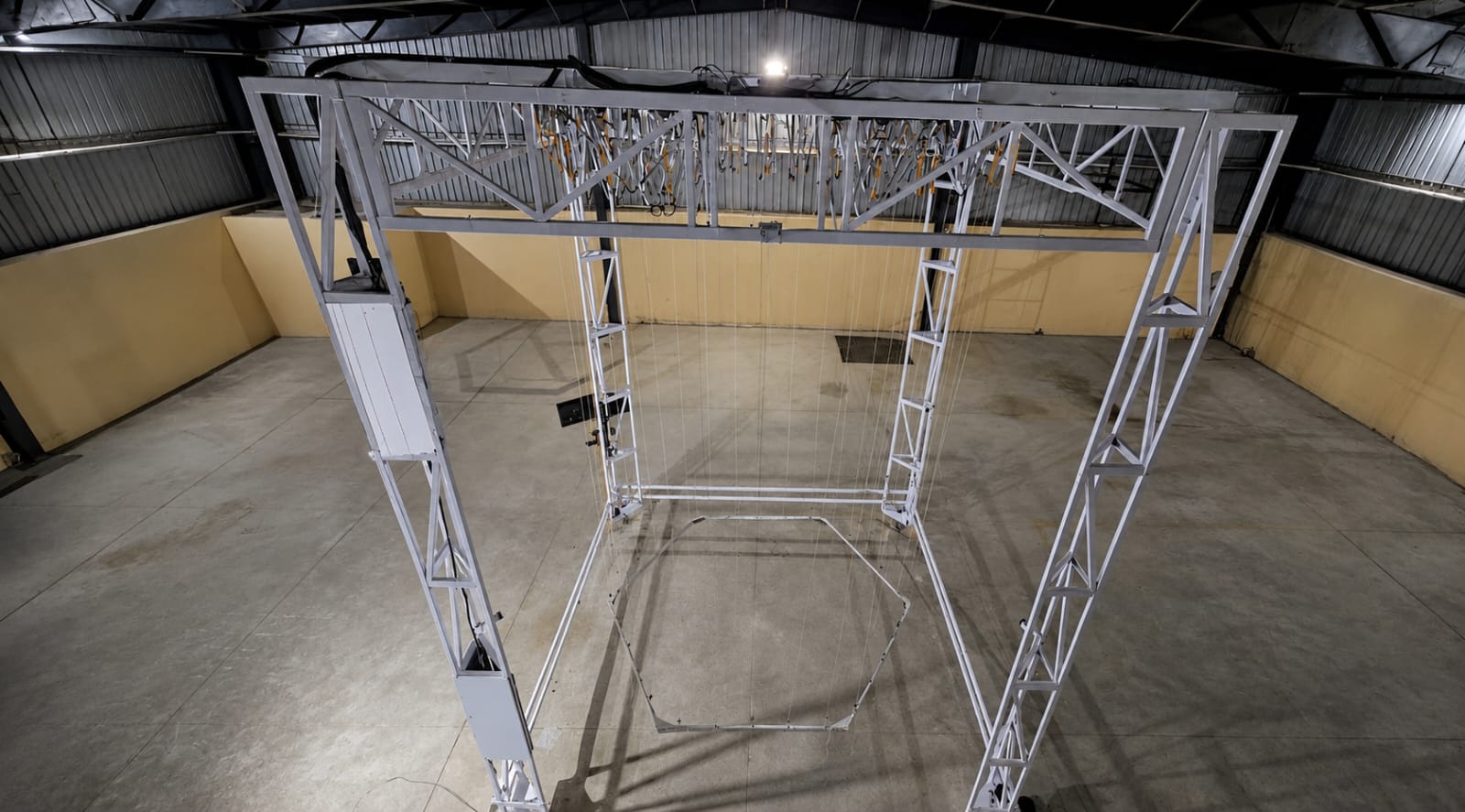

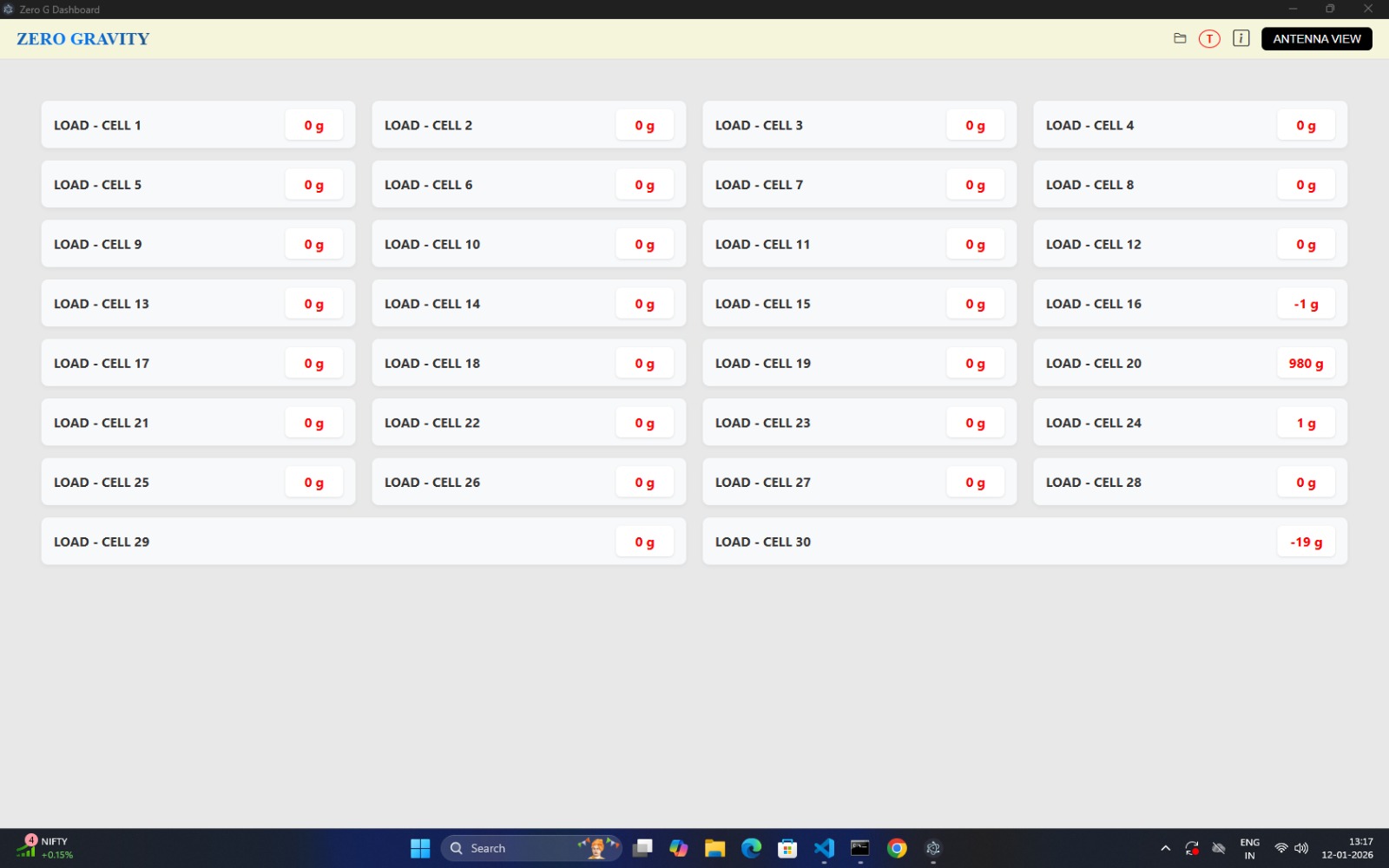

Zero Gravity is a structure that measures the load on each side of the antenna using load cells for precise, real-time data.
Amplifiers help load cells collect accurate data, which is displayed live within the software interface.

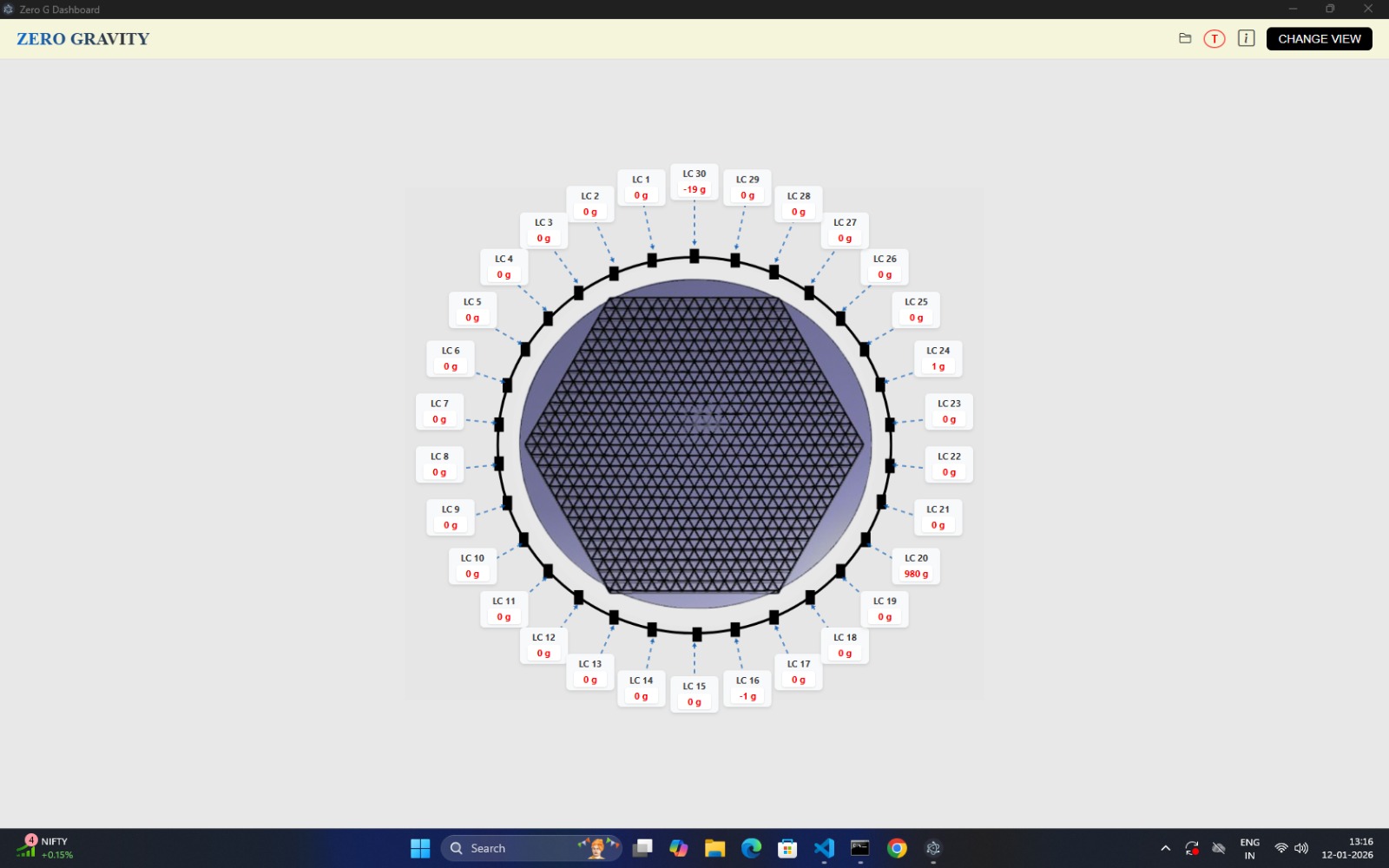

The view of the Zero Gravity structure can be changed and adjusted according to user preference.

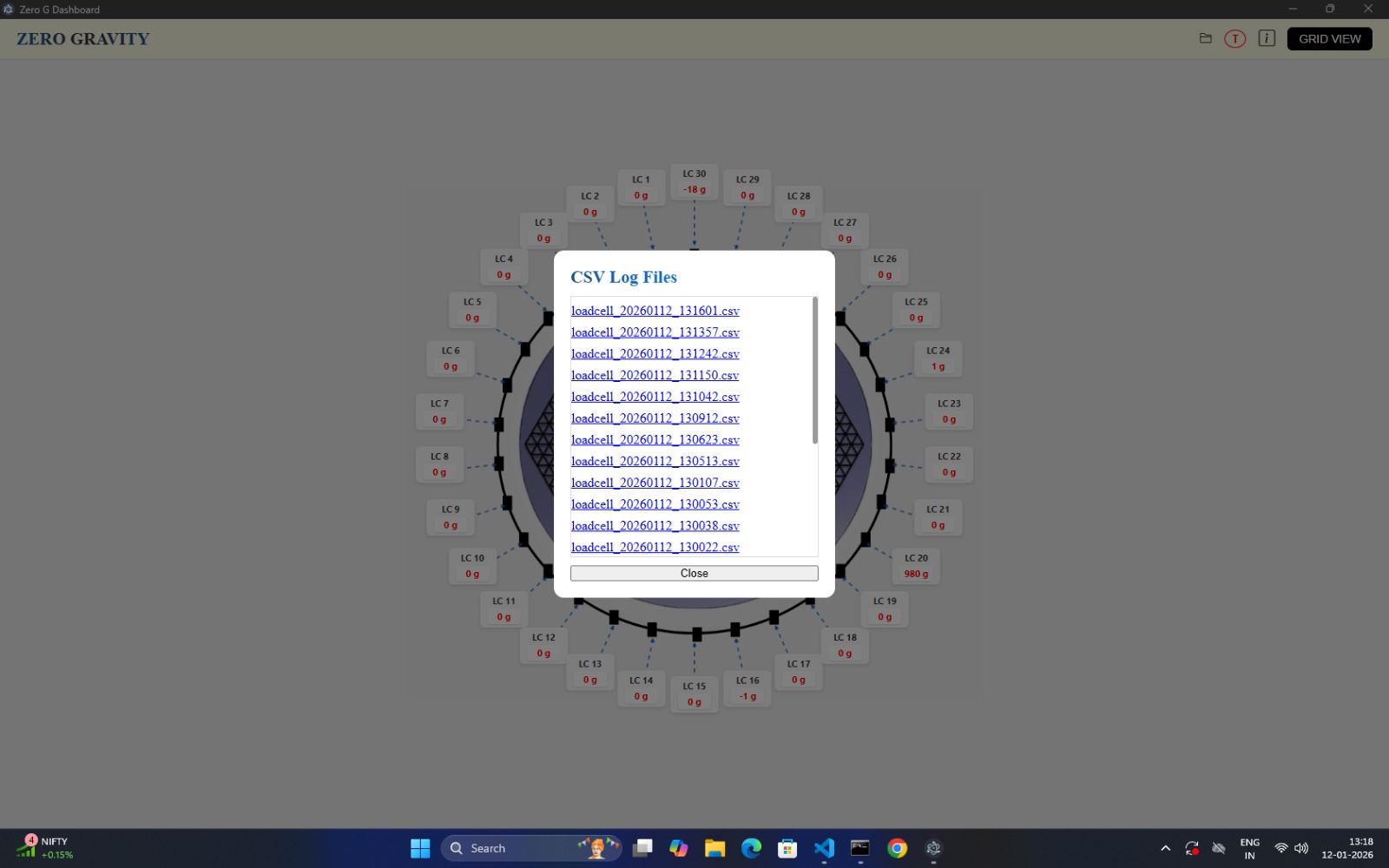

The software automatically generates a CSV file to store all collected data for record-keeping and analysis.
Equipped with 6 cameras — 4 mounted on each pillar and 2 on top — to verify and monitor co-planarity accurately.
Can be customisable according to end user requirement * Specifications listed are indicative and based on standard configuration. Actual values may vary depending on end-user requirements, application constraints, and are subject to final engineering review and approval.
